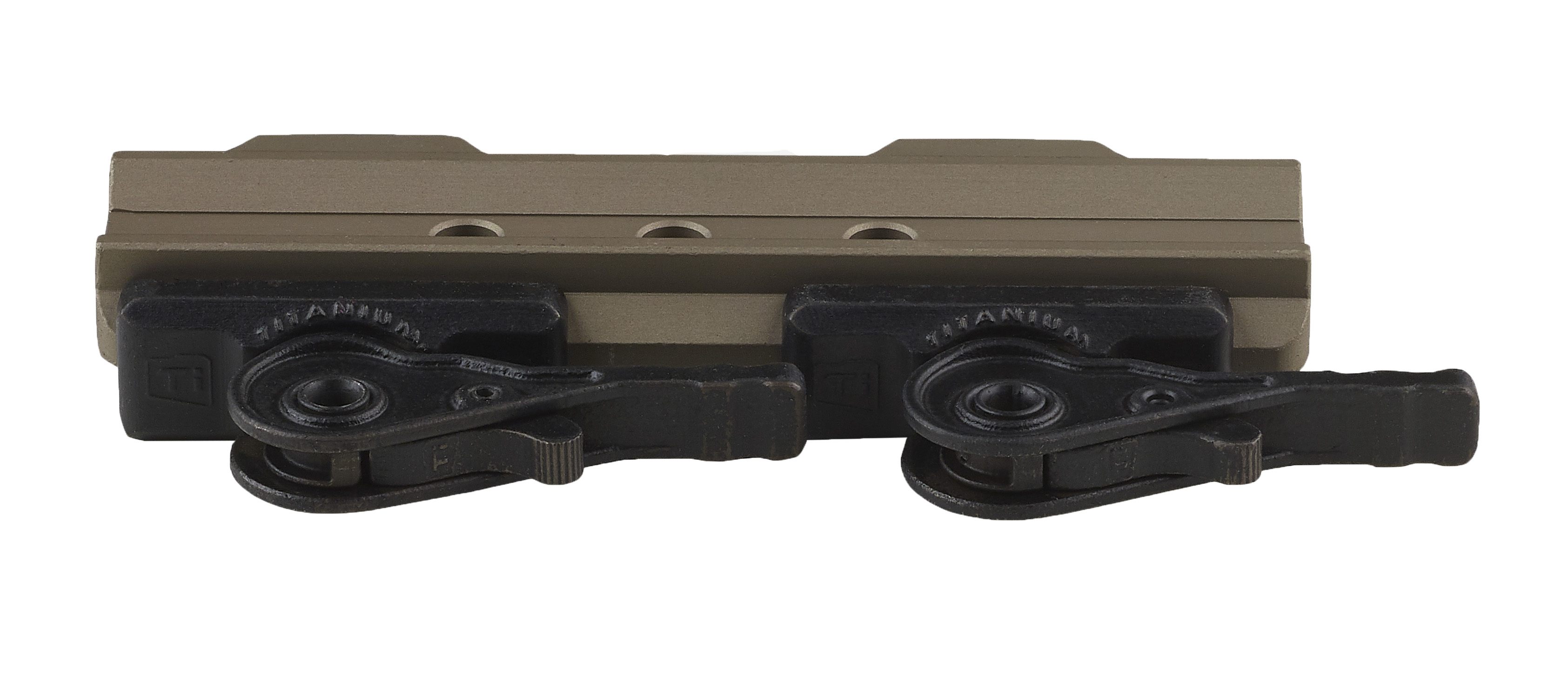

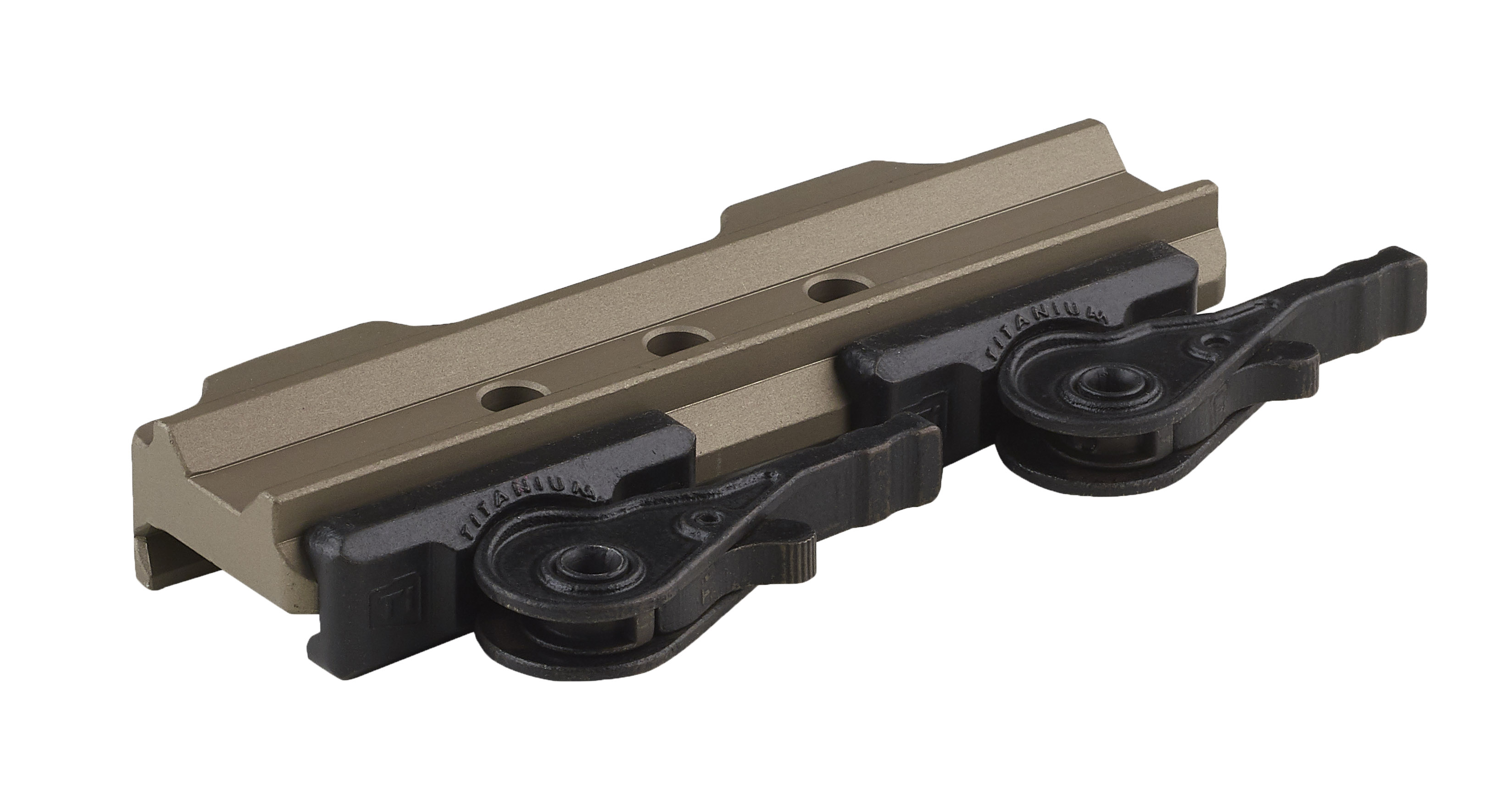

The AD-B3-HD-TL modular base is the large base in our modular lineup. This mount is similar to the AD-B3, but it features a second throw lever for added mount security. Standalone it is mount for the full sized 3x Power ACOG scopes, such as the TA01, TA11, TA31 and the VCOG. Also fits scopes with similar ACOG Style Bases such as the Burris AR-332 and newer model Trijicon RX-30 optics with 3 inline mounting holes. The overall length of the base is 3.5″. It is precision machined from 6061 T6 aluminum and finished in hard coat T3 Mil-Spec anodize. It features the Patented QD Auto Lock™ Titanium Lever system to accommodate both in spec and out of spec rail systems.
The AD-B3-HD-TL Modular base features the Patented QD Auto Lock™ Titanium Lever system which has the following advantages:
The AD-B3-HD-TL Modular base is precision CNC machined from a block of 6061 T6 aluminum and finished in hard coat type 3 Mil-Spec anodize for a rock hard lasting finish.
The AD-B3-HD-TL Modular base has the following specifications:
For your convenience we have published a set of installation instructions for this product. The instructions are in Adobe Acrobat’s Portable Document Format (PDF). You will need Adobe Acrobat Reader version 5.0 or higher to view and print the instructions.
If you do not have Adobe’s Acrobat Reader, you can download a free copy at http://www.adobe.com/acrobat/readstep.html.
